反相器

模块 / 二极管 / 二极管+可控硅混合桥

产品名称类型数据表连接电压[V]电流(/chip)[A]电流(/total)[A]封装形式 ID A IT(AV) ℃ ITSM [A(60Hz)] I2t [A2s] IGT [mA(25℃)] VGT [V(25℃)] VT [V(25℃)] IT [V(25℃)] Rthj-c [℃/W]
SFF200CC80 Three phase Half Controlled Bridge Rectifier POPUP POPUP 800 - 200 POPUP 200 92 2300 22000 150 3 1.35 15(125℃) 0.06
SFF200BB80 Three phase Half Controlled Bridge Rectifier POPUP POPUP 800 - 200 POPUP 200 92 2300 22000 150 3 1.35 15(125℃) 0.06

模块 / IGBT / IGBT

产品名称类型数据表连接电压[V]电流(/chip)[A]电流(/total)[A]封装形式 IGBT
VCES [V]
IGBT
VGES [V]
IGBT
IC A
IGBT
IC ℃
IGBT
VCE(sat) [V]
IGBT
VGE(th) [V]
IGBT
ton μs
IGBT
toff μs
FWD
trr ns
Rthj-c [℃/W]

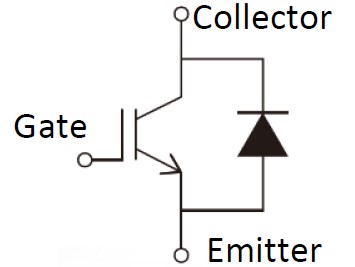

GSA75AA120 IGBT POPUP POPUP 1200 75 75 POPUP 1200 ±20 75 57 3.9 6.3 115 275 125 0.25(IGBT)

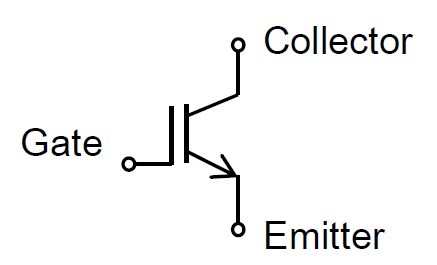

GSA100AA60 IGBT POPUP POPUP 600 100 100 POPUP 600 ±20 100 113 1.5 6.7 1260 8780 - 0.25

分立式器件 / SiC MOSFET

产品名称类型数据表连接电压[V]电流(/chip)[A]电流(/total)[A]封装形式 MOSFET
VDSS [V]
MOSFET
ID [A]
MOSFET
VGSS [V]
MOSFET
RDS(on) [mΩ]
MOSFET
VGS(th) [V]
通道二极管
Is [A]
通道二极管
VSD [V]
Rthj-c [℃/W]

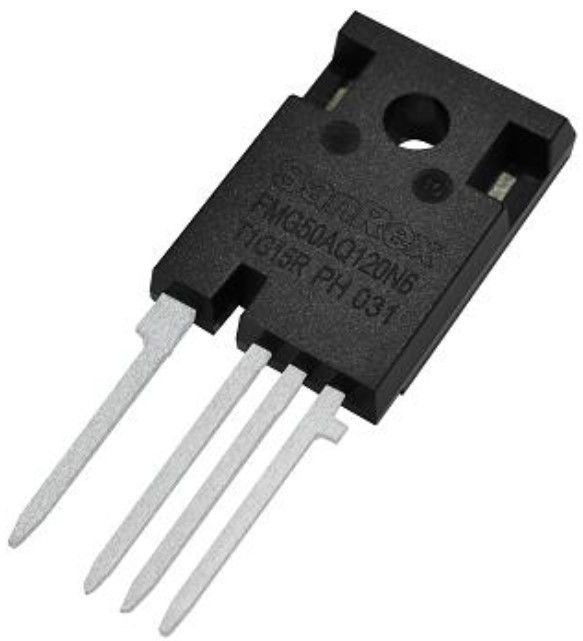

FMG50AQ120N6 SiC MOSFET POPUP POPUP 1200 50 50 POPUP 1200 50 -7~22 13(typ.) 3~5 50 2.65(typ.) 0.28

模块 / 二极管 / 三相整流二极管+可控硅

产品名称类型数据表连接电压[V]电流(/chip)[A]电流(/total)[A]封装形式 ID A ID ℃ IFSM [A(60Hz)] I2t [A2s] VFM(D) [V(25℃)] IRRM(D) [mA(150℃)] Rthj-c(D) [℃/W] VTM(THY) [V(25℃)] IRRM(THY) [mA(135℃)] Rthj-c(THY) [℃/W] Tj(max) (thy) Tj(max) (Diode)
DFA250AA80 Rectifier diode POPUP POPUP 800 - 250 POPUP 250 96 2000 17000 1.4 20 0.077 1.25 100 0.132 135℃ 150℃
DFA250AA160 Rectifier diode POPUP POPUP 1600 - 250 POPUP 250 96 2000 17000 1.4 20 0.077 1.25 100 0.132 135℃ 150℃
DFA50BA80 Rectifier diode POPUP POPUP 800 - 50 POPUP 50 117 800 2660 1.30 8 0.25 1.25 50 0.80 135℃ 150℃
DFA50BA160 Rectifier diode POPUP POPUP 1600 - 50 POPUP 50 117 800 2660 1.30 8 0.25 1.25 50 0.80 135℃ 150℃
DFA200CB80 Rectifier diode POPUP POPUP 800 - 200 POPUP 200 96 2000 17000 1.35 20 0.1 1.15 50 0.15 150℃ 150℃
DFA200CB160 Rectifier diode POPUP POPUP 1600 - 200 POPUP 200 96 2000 17000 1.35 20 0.1 1.15 50 0.15 150℃ 150℃
DFA200AA80 Rectifier diode POPUP POPUP 800 - 200 POPUP 200 96 2000 17000 1.35 20 0.1 1.15 50 0.18 135℃ 150℃
DFA200AA160 Rectifier diode POPUP POPUP 1600 - 200 POPUP 200 96 2000 17000 1.35 20 0.1 1.15 50 0.18 135℃ 150℃
DFA150CB80 Rectifier diode POPUP POPUP 800 - 150 POPUP 150 113 1600 10670 1.35 15 0.09 1.35 100 0.18 150℃ 150℃
DFA150CB160 Rectifier diode POPUP POPUP 1600 - 150 POPUP 150 113 1600 10670 1.35 15 0.09 1.35 100 0.18 150℃ 150℃
DFA150BA80 Rectifier diode POPUP POPUP 800 - 150 POPUP 150 105 1600 10670 1.35 15 0.09 1.35 100 0.22 150℃ 150℃
DFA150BA160 Rectifier diode POPUP POPUP 1600 - 150 POPUP 150 105 1600 10670 1.35 15 0.09 1.35 100 0.22 150℃ 150℃
DFA150AA80 Rectifier diode POPUP POPUP 800 - 150 POPUP 150 93 1600 10670 1.35 15 0.14 1.35 100 0.21 135℃ 150℃
DFA150AA160 Rectifier diode POPUP POPUP 1600 - 150 POPUP 150 93 1600 10670 1.35 15 0.14 1.35 100 0.21 135℃ 150℃
DFA100BA80 Rectifier diode POPUP POPUP 800 - 100 POPUP 100 98 1300 7030 1.30 12 0.20 1.20 70 0.36 135℃ 150℃
DFA100BA160 Rectifier diode POPUP POPUP 1600 - 100 POPUP 100 98 1300 7030 1.30 12 0.20 1.20 70 0.36 135℃ 150℃

模块 / 可控硅 / 可控硅

产品名称类型数据表连接电压[V]电流(/chip)[A]电流(/total)[A]封装形式 IT(AV) A IT(AV) ℃ ITSM [A(60Hz)] I2t [A2s] IGT [mA(25℃)] VGT [V(25℃)] VTM [V(25℃)] IDRM/IRRM [mA] Rthj-c [℃/W] Tj(max) [℃]
SCE200DB160 Thyristor POPUP POPUP 1600 200 200 POPUP 200 83 6500 180000 100 3 1.34 100(125℃) 0.155 125
SCE200DB80 Thyristor POPUP POPUP 800 200 200 POPUP 200 83 6500 180000 100 3 1.34 100(125℃) 0.155 125
SCE160DB160 Thyristor POPUP POPUP 1600 160 160 POPUP 160 88 5900 145000 100 3 1.4 100(125℃) 0.17 125
SCE160DB80 Thyristor POPUP POPUP 800 160 160 POPUP 160 88 5900 145000 100 3 1.4 100(125℃) 0.17 125
SCA200DB160 Thyristor POPUP POPUP 1600 200 200 POPUP 200 83 6500 180000 100 3 1.34 100(125℃) 0.155 125
SCA200DB80 Thyristor POPUP POPUP 800 200 200 POPUP 200 83 6500 180000 100 3 1.34 100(125℃) 0.155 125
SCA160DB160 Thyristor POPUP POPUP 1600 160 160 POPUP 160 88 5900 145000 100 3 1.4 100(125℃) 0.17 125
SCA160DB80 Thyristor POPUP POPUP 800 160 160 POPUP 160 88 5900 145000 100 3 1.4 100(125℃) 0.17 125
SSA500AA80 Thyristor POPUP POPUP 800 500 500 POPUP 500 66 10000 4.16×10#5 200 3 1.45 150(125℃) 0.085 125
SSA500AA160 Thyristor POPUP POPUP 1600 500 500 POPUP 500 66 10000 4.16×10#5 200 3 1.45 150(125℃) 0.085 125
SCE240DA160 Thyristor POPUP POPUP 1600 240 240 POPUP 240 86 6500 180000 100 3 1.5 100(125℃) 0.105 125
SCE200DA80 Thyristor POPUP POPUP 800 200 200 POPUP 200 82 6500 180000 100 3 1.4 100(125℃) 0.155 125
SCE200DA160 Thyristor POPUP POPUP 1600 200 200 POPUP 200 82 6500 180000 100 3 1.4 100(125℃) 0.155 125
SCE200CA200 Thyristor POPUP POPUP 2000 200 200 POPUP 200 76 5500 125000 100 3 1.7 50(130℃) 0.155 130
SCE160DA80 Thyristor POPUP POPUP 800 160 160 POPUP 160 88 5900 145000 100 3 1.4 100(125℃) 0.17 125
SCE160DA160 Thyristor POPUP POPUP 1600 160 160 POPUP 160 88 5900 145000 100 3 1.4 100(125℃) 0.17 125
SCE160CA200 Thyristor POPUP POPUP 2000 160 160 POPUP 160 85 4500 84000 100 3 1.65 40(130℃) 0.17 130
SCE110AB160 Thyristor POPUP POPUP 1600 110 110 POPUP 110 89 2300 22000 150 3.2 2.0 70(150℃) 0.28 150
SCA240DA160 Thyristor POPUP POPUP 1600 240 240 POPUP 240 86 6500 180000 100 3 1.5 100(125℃) 0.105 125
SCA200DA160 Thyristor POPUP POPUP 1600 200 200 POPUP 200 82 6500 180000 100 3 1.4 100(125℃) 0.155 125
SCA160DA160 Thyristor POPUP POPUP 1600 160 160 POPUP 160 88 5900 145000 100 3 1.4 100(125℃) 0.17 125
SBB500AA80 Thyristor POPUP POPUP 800 500 500 POPUP 500 66 10000 4.16×10#5 200 3 1.45 150(125℃) 0.085 125
SBB500AA160 Thyristor POPUP POPUP 1600 500 500 POPUP 500 66 10000 4.16×10#5 200 3 1.45 150(125℃) 0.085 125
SBA500AA80 Thyristor POPUP POPUP 800 500 500 POPUP 500 66 10000 4.16×10#5 200 3 1.45 150(125℃) 0.085 125
SBA500AA160 Thyristor POPUP POPUP 1600 500 500 POPUP 500 66 10000 4.16×10#5 200 3 1.45 150(125℃) 0.085 125
PK90FG80 Thyristor POPUP POPUP 800 90 90 POPUP 90 82 2300 22040 50 3 1.6 25(125℃) 0.3 125
PK90FG160 Thyristor POPUP POPUP 1600 90 90 POPUP 90 82 2300 22040 50 3 1.6 25(125℃) 0.3 125
PK70FG80 Thyristor POPUP POPUP 800 70 70 POPUP 70 84 1600 10660 50 3 1.6 20(125℃) 0.37 125
PK70FG160 Thyristor POPUP POPUP 1600 70 70 POPUP 70 84 1600 10660 50 3 1.6 20(125℃) 0.37 125
PK55FG80 Thyristor POPUP POPUP 800 55 55 POPUP 55 81 1300 7040 50 3 1.6 15(125℃) 0.5 125
PK55FG160 Thyristor POPUP POPUP 1600 55 55 POPUP 55 81 1300 7040 50 3 1.6 15(125℃) 0.5 125
PK40FG80 Thyristor POPUP POPUP 800 40 40 POPUP 40 83 950 3760 50 3 1.6 10(125℃) 0.65 125
PK40FG160 Thyristor POPUP POPUP 1600 40 40 POPUP 40 83 950 3760 50 3 1.6 10(125℃) 0.65 125
PK25FG80 Thyristor POPUP POPUP 800 25 25 POPUP 25 81 700 2870 50 3 1.6 5(125℃) 1.1 125
PK25FG160 Thyristor POPUP POPUP 1600 25 25 POPUP 25 81 700 2870 50 3 1.6 5(125℃) 1.1 125
PK250HB160 Thyristor POPUP POPUP 1600 250 250 POPUP 250 72 5500 125000 100 3 1.6 50(125℃) 0.14 125
PK250GB80 Thyristor POPUP POPUP 800 250 250 POPUP 250 72 5500 125000 100 3 1.6 50(125℃) 0.14 125
PK200FG80 Thyristor POPUP POPUP 800 200 200 POPUP 200 73 6500 180000 100 3 1.5 100(125℃) 0.167 125
PK200FG160 Thyristor POPUP POPUP 1600 200 200 POPUP 200 73 6500 180000 100 3 1.5 100(125℃) 0.167 125
PK160FG80 Thyristor POPUP POPUP 800 160 160 POPUP 160 84 5400 125000 100 3 1.5 100(125℃) 0.18 125
PK160FG160 Thyristor POPUP POPUP 1600 160 160 POPUP 160 84 5400 125000 100 3 1.5 100(125℃) 0.18 125
PK130FG80 Thyristor POPUP POPUP 800 130 130 POPUP 130 83 3500 51040 50 3 1.6 35(125℃) 0.2 125
PK130FG160 Thyristor POPUP POPUP 1600 130 130 POPUP 130 83 3500 51040 50 3 1.6 35(125℃) 0.2 125
PK110FG80 Thyristor POPUP POPUP 800 110 110 POPUP 110 81 3000 37500 50 3 1.6 30(125℃) 0.25 125
PK110FG160 Thyristor POPUP POPUP 1600 110 110 POPUP 110 81 3000 37500 50 3 1.6 30(125℃) 0.25 125
PD90FG80 Thyristor POPUP POPUP 800 90 90 POPUP 90 82 2300 22040 50 3 1.6 25(125℃) 0.3 125
PD90FG160 Thyristor POPUP POPUP 1600 90 90 POPUP 90 82 2300 22040 50 3 1.6 25(125℃) 0.3 125
PD70FG80 Thyristor POPUP POPUP 800 70 70 POPUP 70 84 1600 10660 50 3 1.6 20(125℃) 0.37 125
PD70FG160 Thyristor POPUP POPUP 1600 70 70 POPUP 70 84 1600 10660 50 3 1.6 20(125℃) 0.37 125
PD55FG80 Thyristor POPUP POPUP 800 55 55 POPUP 55 81 1300 7040 50 3 1.6 15(125℃) 0.5 125
PD55FG160 Thyristor POPUP POPUP 1600 55 55 POPUP 55 81 1300 7040 50 3 1.6 15(125℃) 0.5 125
PD40FG80 Thyristor POPUP POPUP 800 40 40 POPUP 40 83 950 3760 50 3 1.6 10(125℃) 0.65 125
PD40FG160 Thyristor POPUP POPUP 1600 40 40 POPUP 40 83 950 3760 50 3 1.6 10(125℃) 0.65 125
PD25FG80 Thyristor POPUP POPUP 800 25 25 POPUP 25 81 700 2870 50 3 1.6 5(125℃) 1.1 125
PD25FG160 Thyristor POPUP POPUP 1600 25 25 POPUP 25 81 700 2870 50 3 1.6 5(125℃) 1.1 125
PD250HB160 Thyristor POPUP POPUP 1600 250 250 POPUP 250 72 5500 125000 100 3 1.6 50(125℃) 0.14 125
PD250GB80 Thyristor POPUP POPUP 800 250 250 POPUP 250 72 5500 125000 100 3 1.6 50(125℃) 0.14 125
PD200FG80 Thyristor POPUP POPUP 800 200 200 POPUP 200 73 6500 180000 100 3 1.5 100(125℃) 0.167 125
PD200FG160 Thyristor POPUP POPUP 1600 200 200 POPUP 200 73 6500 180000 100 3 1.5 100(125℃) 0.167 125
PD160FG80 Thyristor POPUP POPUP 800 160 160 POPUP 160 84 5400 125000 100 3 1.5 100(125℃) 0.18 125
PD160FG160 Thyristor POPUP POPUP 1600 160 160 POPUP 160 84 5400 125000 100 3 1.5 100(125℃) 0.18 125
PD130FG80 Thyristor POPUP POPUP 800 130 130 POPUP 130 83 3500 51040 50 3 1.6 35(125℃) 0.2 125
PD130FG160 Thyristor POPUP POPUP 1600 130 130 POPUP 130 83 3500 51040 50 3 1.6 35(125℃) 0.2 125
PD110FG80 Thyristor POPUP POPUP 800 110 110 POPUP 110 81 3000 37500 50 3 1.6 30(125℃) 0.25 125
PD110FG160 Thyristor POPUP POPUP 1600 110 110 POPUP 110 81 3000 37500 50 3 1.6 30(125℃) 0.25 125

模块 / 二极管 / 整流二极管

产品名称类型数据表连接电压[V]电流(/chip)[A]电流(/total)[A]封装形式 IF(AV) A IF(AV) ℃ IFSM [A(60Hz)] I2t [A2s] VFM [V(25℃)] IRRM [mA] Rthj-c [℃/W]
DCA240EB160 Rectifier diode POPUP POPUP 1600 240 240 POPUP 240 113 5500 125000 1.35 50(150℃) 0.12
DCA240EB80 Rectifier diode POPUP POPUP 800 240 240 POPUP 240 113 5500 125000 1.35 50(150℃) 0.12
DCA240DB160 Rectifier diode POPUP POPUP 1600 240 240 POPUP 240 104 5500 125000 1.35 50(150℃) 0.15
DCA240DB80 Rectifier diode POPUP POPUP 800 240 240 POPUP 240 104 5500 125000 1.35 50(150℃) 0.15
DCA200DB220 Rectifier diode POPUP POPUP 2200 200 200 POPUP 200 110 5500 125000 1.4 50(150℃) 0.15
DCA200DB160 Rectifier diode POPUP POPUP 1600 200 200 POPUP 200 113 5500 125000 1.3 50(150℃) 0.15
DCA200DB80 Rectifier diode POPUP POPUP 800 200 200 POPUP 200 113 5500 125000 1.3 50(150℃) 0.15

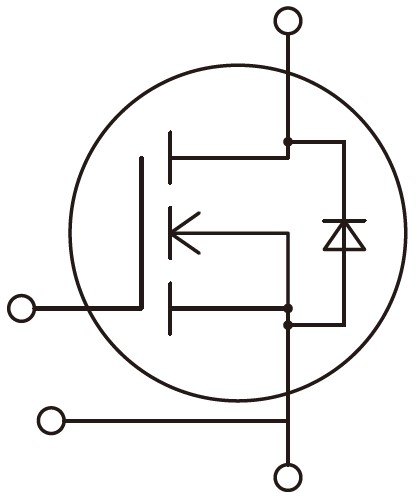

模块 / SiC MOSFET / SiC MOSFET

产品名称类型数据表连接电压[V]电流(/chip)[A]电流(/total)[A]封装形式 MOSFET
VDSS [V]
MOSFET
ID [A]
MOSFET
VGSS [V]
MOSFET
RDS(on) [mΩ]
MOSFET
VGS(th) [V]
通道二极管
Is [A]
通道二极管
VSD [V]
Rthj-c [℃/W]

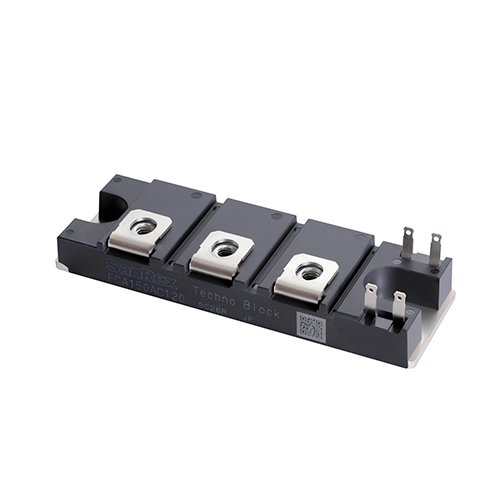

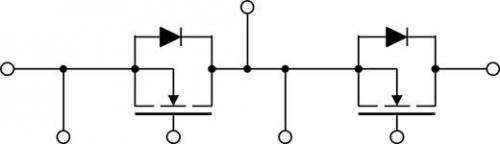

FCA100AC120 SiC MOSFET POPUP POPUP 1200 100 100 POPUP 1200 100 -7~22 6.8(typ.) 3~5 100 2.60(typ.) 0.16
FCA150AC120 SiC MOSFET POPUP POPUP 1200 150 150 POPUP 1200 150 -7~22 4.1(typ.) 3~5 150 2.68(typ.) 0.11

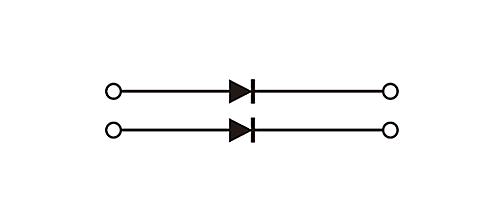

模块 / 二极管 / 高速二极管

产品名称类型数据表连接电压[V]电流(/chip)[A]电流(/total)[A]封装形式 IF(AV) A IF(AV) ℃ IFSM [A(60Hz)] I2t [A2s] VFM [V(25℃)] IRRM [mA(125℃)] trr [ns] Rthj-c [℃/W]
DKR200AB60 Fast recovery diode POPUP POPUP 600 100 200 POPUP 100 133 3600 54000 1.4 100 200 0.125
FRS400EA200 Fast recovery diode POPUP POPUP 2000 400 400 POPUP 400 79 5000 104000 2.2(125℃) 100(150℃) 700 0.08

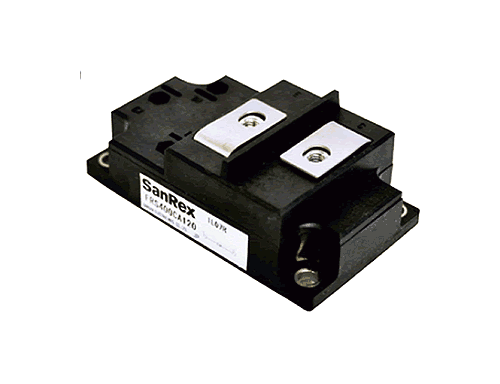

FRS400CA120 Fast recovery diode POPUP POPUP 1200 400 400 POPUP 400 78 4000 66640 1.8 20(150℃) 400 0.1
FRS400BA60 Fast recovery diode POPUP POPUP 600 400 400 POPUP 400 94 4000 66640 1.4 400 200 0.1
FRS300CA50 Fast recovery diode POPUP POPUP 500 300 300 POPUP 300 116 4000 66600 1.3 300 200 0.085

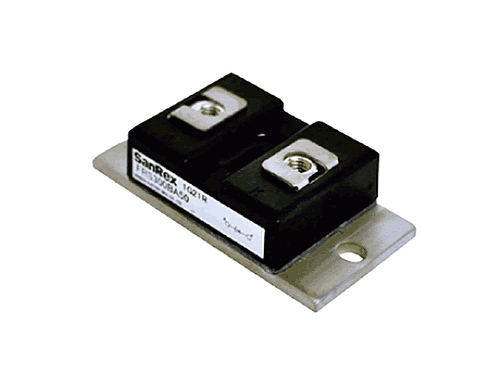

FRS300BA50 Fast recovery diode POPUP POPUP 500 300 300 POPUP 300 85 4000 66600 1.3 300 200 0.165

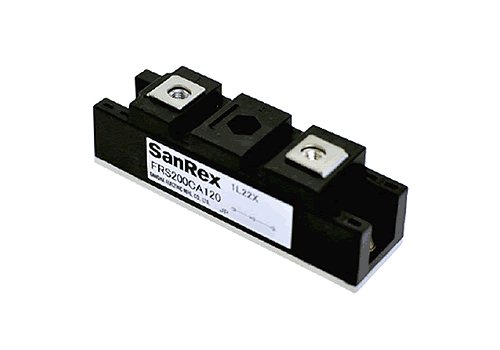

FRS200CA120 Fast recovery diode POPUP POPUP 1200 200 200 POPUP 200 78 3300 45000 1.8 10(150℃) 350 0.2
FRS150BA50 Fast recovery diode POPUP POPUP 500 150 150 POPUP 150 85 3000 37500 1.3 150 200 0.33
FRD100CA120 Fast recovery diode POPUP POPUP 1200 100 200 POPUP 100 78 2000 16600 1.8 5(150℃) 300 0.4
FDS100CA120 Fast recovery diode POPUP POPUP 1200 100 100 POPUP 100 78 2000 16600 1.8 5(150℃) 300 0.4
FDF60BA60 Fast recovery diode POPUP POPUP 600 - 60 POPUP 60 80 600 1490 1.6 60 100 0.36
FDF25CA120 Fast recovery diode POPUP POPUP 1200 - 25 POPUP 25 114 400 660 1.8 2(150℃) 200 0.4
DSR200BA60 Soft recovery diode POPUP POPUP 600 200 200 POPUP 200 85 3300 45000 1.3 200 300 0.25

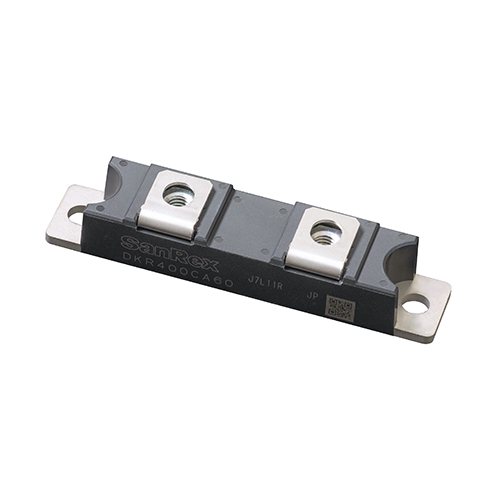

DKR400CA60 Fast recovery diode POPUP POPUP 600 200 400 POPUP 200 105 5600 130000 1.6 100 200 0.14
DKR400AB60 Fast recovery diode POPUP POPUP 600 200 400 POPUP 200 122 6000 150000 1.4 150 200 0.1
DKR300AB60 Fast recovery diode POPUP POPUP 600 150 300 POPUP 150 124 3600 54000 1.4 100 200 0.125
DKA300AA60 Soft recovery diode POPUP POPUP 600 150 300 POPUP 150 72 2500 26000 1.3 150 300 0.4
DKA200AA60 Soft recovery diode POPUP POPUP 600 100 200 POPUP 100 85 2000 16700 1.3 100 300 0.5
DCA150BA65 Soft recovery diode POPUP POPUP 650 150 150 POPUP 150 63 1500 9300 1.7 150 200 0.34
DCA150AA60 Soft recovery diode POPUP POPUP 600 150 150 POPUP 150 72 2500 26000 1.3 150 300 0.4
DCA100BA60 Soft recovery diode POPUP POPUP 600 100 100 POPUP 100 80 1350 7500 1.55 100 200 0.45
DBA200YA40 Fast recovery diode POPUP POPUP 400 100 200 POPUP 100 89 1100 5000 1.35 6(150℃) 85 0.45
DBA200WA60 Soft recovery diode POPUP POPUP 600 100 200 POPUP 100 89 1100 5050 1.5 4 130 0.45
DBA200WA40 Soft recovery diode POPUP POPUP 400 100 200 POPUP 100 96 1100 5050 1.2 4 110 0.45

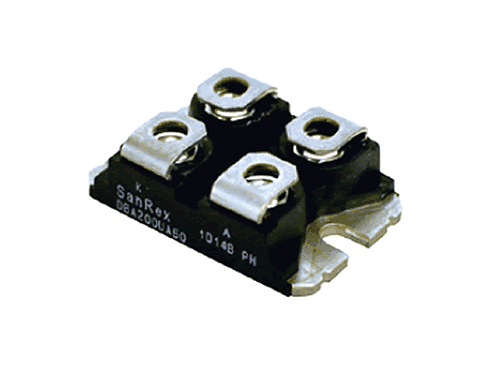

DBA200UA60 Soft recovery diode POPUP POPUP 600 100 200 POPUP 100 89 700 2100 1.35 100(150℃) 250 0.45
DBA200UA40 Soft recovery diode POPUP POPUP 400 100 200 POPUP 100 96 700 2100 1.20 100(150℃) 130 0.45

模块 / 二极管 / 三相整流二极管

产品名称类型数据表连接电压[V]电流(/chip)[A]电流(/total)[A]封装形式 ID A ID ℃ IFSM [A(60Hz)] I2t [A2s] VFM [V(25℃)] IRRM [mA(150℃)] Rthj-c [℃/W]
DF100NB160 Rectifier diode POPUP POPUP 1600 - 100 POPUP 100 98 1000 4100 1.35 8 0.2
DF75NB160 Rectifier diode POPUP POPUP 1600 - 75 POPUP 75 112 1000 4100 1.3 8 0.2
DF75LB80 Rectifier diode POPUP POPUP 800 - 75 POPUP 75 101 1000 - 1.3 8 0.25
DF75LB160 Rectifier diode POPUP POPUP 1600 - 75 POPUP 75 101 1000 - 1.3 8 0.25
DF75LA80 Rectifier diode POPUP POPUP 800 - 75 POPUP 75 101 1000 - 1.3 8 0.25
DF75LA160 Rectifier diode POPUP POPUP 1600 - 75 POPUP 75 101 1000 - 1.3 8 0.25
DF75BA80 Rectifier diode POPUP POPUP 800 - 75 POPUP 75 107 1000 - 1.2 10 0.24
DF75AC80 Rectifier diode POPUP POPUP 800 - 75 POPUP 75 100 1000 4100 1.4 10 0.24
DF75AC160 Rectifier diode POPUP POPUP 1600 - 75 POPUP 75 100 1000 4100 1.4 10 0.24
DF75AA160 Rectifier diode POPUP POPUP 1600 - 75 POPUP 75 100 1000 - 1.4 10 0.24
DF75AA120 Rectifier diode POPUP POPUP 1200 - 75 POPUP 75 100 1000 - 1.4 10 0.24
DF60NB160 Rectifier diode POPUP POPUP 1600 - 60 POPUP 60 110 800 2600 1.3 8 0.25
DF60LB80 Rectifier diode POPUP POPUP 800 - 60 POPUP 60 111 800 - 1.3 8 0.25
DF60LB160 Rectifier diode POPUP POPUP 1600 - 60 POPUP 60 111 800 - 1.3 8 0.25
DF60LA80 Rectifier diode POPUP POPUP 800 - 60 POPUP 60 111 800 - 1.3 8 0.25
DF60LA160 Rectifier diode POPUP POPUP 1600 - 60 POPUP 60 111 800 - 1.3 8 0.25
DF60BA80 Rectifier diode POPUP POPUP 800 - 60 POPUP 60 115 1000 - 1.2 6 0.24
DF60AA160 Rectifier diode POPUP POPUP 1600 - 60 POPUP 60 112 1000 - 1.3 12 0.24
DF60AA120 Rectifier diode POPUP POPUP 1200 - 60 POPUP 60 112 1000 - 1.3 12 0.24
DF50BA80 Rectifier diode POPUP POPUP 800 - 50 POPUP 50 114 700 - 1.2 4 0.30
DF50AA160 Rectifier diode POPUP POPUP 1600 - 50 POPUP 50 114 700 - 1.2 8 0.30
DF50AA120 Rectifier diode POPUP POPUP 1200 - 50 POPUP 50 114 700 - 1.2 8 0.30
DF40BA80 Rectifier diode POPUP POPUP 800 - 40 POPUP 40 119 700 - 1.2 4 0.32
DF40AA160 Rectifier diode POPUP POPUP 1600 - 40 POPUP 40 116 700 - 1.3 3 0.32
DF40AA120 Rectifier diode POPUP POPUP 1200 - 40 POPUP 40 116 700 - 1.3 3 0.32
DF30NA80 S Rectifier diode POPUP POPUP 800 - 30 POPUP 30 92 400 660 1.2 5/14 0.8
DF30NA80 F1 Rectifier diode POPUP POPUP 800 - 30 POPUP 30 92 400 660 1.2 5/14 0.8
DF30NA160 S Rectifier diode POPUP POPUP 1600 - 30 POPUP 30 92 400 660 1.2 5/14 0.8
DF30NA160 F1 Rectifier diode POPUP POPUP 1600 - 30 POPUP 30 92 400 660 1.2 5/14 0.8
DF30CA160 Rectifier diode POPUP POPUP 1600 - 30 POPUP 30 122 850 - 1.1 12 0.42
DF30AA160 Rectifier diode POPUP POPUP 1600 - 30 POPUP 30 117 300 - 1.3 3 0.42
DF30AA120 Rectifier diode POPUP POPUP 1200 - 30 POPUP 30 117 300 - 1.3 3 0.42
DF20NA80 S Rectifier diode POPUP POPUP 800 - 20 POPUP 20 111 350 500 1.2 4/8 0.8
DF20NA80 F1 Rectifier diode POPUP POPUP 800 - 20 POPUP 20 111 350 500 1.2 4/8 0.8
DF20NA160 S Rectifier diode POPUP POPUP 1600 - 20 POPUP 20 111 350 500 1.2 4/8 0.8
DF20NA160 F1 Rectifier diode POPUP POPUP 1600 - 20 POPUP 20 111 350 500 1.2 4/8 0.8
DF20CA80 Rectifier diode POPUP POPUP 800 - 20 POPUP 20 123 600 - 1.1 8 0.6
DF20CA160 Rectifier diode POPUP POPUP 1600 - 20 POPUP 20 123 600 - 1.1 8 0.6
DF20AA160 Rectifier diode POPUP POPUP 1600 - 20 POPUP 20 119 240 - 1.25 3 0.6
DF20AA120 Rectifier diode POPUP POPUP 1200 - 20 POPUP 20 119 240 - 1.25 3 0.6
DF200AC80 Rectifier diode POPUP POPUP 800 - 200 POPUP 200 106 2500 26000 1.2 20 0.09
DF200AC160 Rectifier diode POPUP POPUP 1600 - 200 POPUP 200 106 2500 26000 1.2 20 0.09
DF200AB80 Rectifier diode POPUP POPUP 800 - 200 POPUP 200 102 2000 - 1.2 20 0.1
DF200AB160 Rectifier diode POPUP POPUP 1600 - 200 POPUP 200 102 2000 - 1.2 20 0.1
DF150AC80 Rectifier diode POPUP POPUP 800 - 150 POPUP 150 106 2000 17000 1.2 15 0.12
DF150AC160 Rectifier diode POPUP POPUP 1600 - 150 POPUP 150 106 2000 17000 1.2 15 0.12
DF150AB80 Rectifier diode POPUP POPUP 800 - 150 POPUP 150 100 1200 - 1.2 15 0.14
DF100LB80 Rectifier diode POPUP POPUP 800 - 100 POPUP 100 90 1300 - 1.3 12 0.23
DF100LB160 Rectifier diode POPUP POPUP 1600 - 100 POPUP 100 90 1300 - 1.3 12 0.23
DF100LA80 Rectifier diode POPUP POPUP 800 - 100 POPUP 100 90 1300 - 1.3 12 0.23
DF100LA160 Rectifier diode POPUP POPUP 1600 - 100 POPUP 100 90 1300 - 1.3 12 0.23
DF100BA80 Rectifier diode POPUP POPUP 800 - 100 POPUP 100 102 1000 - 1.2 15 0.2
DF100AC80 Rectifier diode POPUP POPUP 800 - 100 POPUP 100 102 1300 7000 1.2 15 0.2
DF100AC160 Rectifier diode POPUP POPUP 1600 - 100 POPUP 100 102 1300 7000 1.2 15 0.2
DF100AA160 Rectifier diode POPUP POPUP 1600 - 100 POPUP 100 102 1000 - 1.2 15 0.2
DF100AA120 Rectifier diode POPUP POPUP 1200 - 100 POPUP 100 102 1000 - 1.2 15 0.2

分立式器件 / 双向可控硅

产品名称类型数据表连接电压[V]电流(/chip)[A]电流(/total)[A]封装形式 IT(RMS) [A] IDRM [mA] VTM [V] IGT [mA]
I+,I-,Ⅱ-
IGT [mA]
Ⅲ+
VGT [V]
I+,I-,Ⅲ-
VGT [V]
Ⅲ+
Tj [℃] [dv/dt]c
V/μs (Tj=125℃)
[dv/dt]c
-A/ms [-di/dt]c
Rthj-c [℃/W]
TMG8D60F5 Triac POPUP POPUP 600 8 8 POPUP 8 2 1.4 10 - 1.5 - 125 10 4 3.7
TMG8CQ60F5 Triac POPUP POPUP 600 8 8 POPUP 8 2 1.4 30 - 1.5 - 150 5(150℃) 4 3.7
TMG8C80F5 Triac POPUP POPUP 800 8 8 POPUP 8 2 1.4 30 - 1.5 - 125 10 4 3.7
TMG8C60 Triac POPUP POPUP 600 8 8 POPUP 8 2 1.4 30 - 1.5 - 125 10 4 2
TMG5D60F5 Triac POPUP POPUP 600 5 5 POPUP 5 1 1.4 10 - 1.5 - 125 5 2.5 4
TMG5D60D Triac POPUP POPUP 600 5 5 POPUP 5 1 1.4 10 - 1.5 - 125 5 2.5 3
TMG5CQ60F5 Triac POPUP POPUP 600 5 5 POPUP 5 2 1.4 20 - 1.5 - 150 2(150℃) 2.5 4
TMG5C80F5 Triac POPUP POPUP 800 5 5 POPUP 5 1 1.4 20 - 1.5 - 125 5 2.5 4
TMG5C60D Triac POPUP POPUP 600 5 5 POPUP 5 1 1.4 20 - 1.5 - 125 5 2.5 3
TMG5C60 Triac POPUP POPUP 600 5 5 POPUP 5 1 1.4 20 - 1.5 - 125 5 2.5 3
TMG40CQ60L Triac POPUP POPUP 600 40 40 POPUP 40 8 1.4 50 - 1.5 - 150 5(150℃) 20 0.6
TMG40CQ60J Triac POPUP POPUP 600 40 40 POPUP 40 8 1.4 50 - 1.5 - 150 5(150℃) 20 1.1
TMG40C80L Triac POPUP POPUP 800 40 40 POPUP 40 5 1.4 50 - 1.5 - 125 10 20 0.6
TMG40C80J Triac POPUP POPUP 800 40 40 POPUP 40 5 1.4 50 - 1.5 - 125 10 20 1.1
TMG40C60L Triac POPUP POPUP 600 40 40 POPUP 40 5 1.4 50 - 1.5 - 125 10 20 0.6
TMG40C60J Triac POPUP POPUP 600 40 40 POPUP 40 5 1.4 50 - 1.5 - 125 10 20 1.1
TMG3D80C Triac POPUP POPUP 800 3 3 POPUP 3 1 1.4 5 10 1.5 2 125 5 1.5 3.8
TMG3D60F5 Triac POPUP POPUP 600 3 3 POPUP 3 1 1.4 5 10 1.5 2 125 5 1.5 5
TMG3D60D Triac POPUP POPUP 600 3 3 POPUP 3 1 1.4 5 10 1.5 2 125 5 1.5 3.8
TMG3D60C Triac POPUP POPUP 600 3 3 POPUP 3 1 1.4 5 10 1.5 2 125 5 1.5 3.8
TMG3CQ60F5 Triac POPUP POPUP 600 3 3 POPUP 3 2 1.4 15 - 1.5 - 150 1(150℃) 1.5 5
TMG3CQ60D Triac POPUP POPUP 600 3 3 POPUP 3 2 1.4 15 - 1.5 - 150 5(150℃) 1.5 3.8
TMG3C80F5 Triac POPUP POPUP 800 3 3 POPUP 3 1 1.4 15 - 1.5 - 125 5 1.5 5
TMG3C80C Triac POPUP POPUP 800 3 3 POPUP 3 1 1.4 15 - 1.5 - 125 5 1.5 3.8
TMG3C60D Triac POPUP POPUP 600 3 3 POPUP 3 1 1.4 15 - 1.5 - 125 5 1.5 3.8
TMG3C60C Triac POPUP POPUP 600 3 3 POPUP 3 1 1.4 15 - 1.5 - 125 5 1.5 3.8
TMG2DQ60F5 Triac POPUP POPUP 600 2 2 POPUP 2 1 1.6 5 - 1.5 - 150 1 1 7.5
TMG2D60F5 Triac POPUP POPUP 600 2 2 POPUP 2 1 1.6 5 10 1.5 2 125 3 1 7.5
TMG2CQ60F5 Triac POPUP POPUP 600 2 2 POPUP 2 1 1.6 15 - 1.5 - 150 1(150℃) 1 7.5
TMG2C80F5 Triac POPUP POPUP 800 2 2 POPUP 2 1 1.6 15 - 1.5 - 125 3 1 7.5
TMG25CQ60L Triac POPUP POPUP 600 25 25 POPUP 25 5 1.4 30 - 1.5 - 150 5(150℃) 12.5 1.2
TMG25CQ60J Triac POPUP POPUP 600 25 25 POPUP 25 5 1.4 30 - 1.5 - 150 5(150℃) 12.5 1.4
TMG25CQ60F Triac POPUP POPUP 600 25 25 POPUP 25 5 1.4 30 - 1.5 - 150 5(150℃) 12.5 1.9
TMG25C80L Triac POPUP POPUP 800 25 25 POPUP 25 5 1.4 30 - 1.5 - 125 10 12.5 1.2
TMG25C80J Triac POPUP POPUP 800 25 25 POPUP 25 5 1.4 30 - 1.5 - 125 10 12.5 1.4
TMG25C80F Triac POPUP POPUP 800 25 25 POPUP 25 5 1.4 30 - 1.5 - 125 10 12.5 1.9
TMG25C60L Triac POPUP POPUP 600 25 25 POPUP 25 5 1.4 30 - 1.5 - 125 10 12.5 1.2
TMG25C60J Triac POPUP POPUP 600 25 25 POPUP 25 5 1.4 30 - 1.5 - 125 10 12.5 1.4
TMG25C60F Triac POPUP POPUP 600 25 25 POPUP 25 5 1.4 30 - 1.5 - 125 10 12.5 1.9
TMG20D60F5 Triac POPUP POPUP 600 20 20 POPUP 20 2 1.4 10 - 1.5 - 125 10 8 2.5
TMG20D60 Triac POPUP POPUP 600 20 20 POPUP 20 2 1.4 10 - 1.5 - 125 10 8 1.0
TMG20CQ60F5 Triac POPUP POPUP 600 20 20 POPUP 20 3 1.4 30 - 1.5 - 150 5(150℃) 10 2.5
TMG20CQ60 Triac POPUP POPUP 600 20 20 POPUP 20 3 1.4 30 - 1.5 - 150 5(150℃) 8 1.0
TMG20C80F5 Triac POPUP POPUP 800 20 20 POPUP 20 2 1.4 30 - 1.5 - 125 10 8 2.5
TMG20C60 Triac POPUP POPUP 600 20 20 POPUP 20 2 1.4 30 - 1.5 - 125 10 8 1.0
TMG1D60 5 Triac POPUP POPUP 600 1 1 POPUP 1 0.5 0.75 20 - 1.5 - 125 4 0.5 50
TMG1C80 5 Triac POPUP POPUP 800 1 1 POPUP 1 0.5 1.6 5 10 1.8 2 125 2 0.5 50
TMG1C60A 5 Triac POPUP POPUP 600 1 1 POPUP 1 0.5 1.6 5 10 1.8 2 125 2 0.5 Rth(j-a)65
TMG1C60 5 Triac POPUP POPUP 600 1 1 POPUP 1 0.5 1.6 5 10 1.8 2 125 2 0.5 50
TMG16D60F5 Triac POPUP POPUP 600 16 16 POPUP 16 2 1.4 10 - 1.5 - 125 10 8 3
TMG16CQ60F5 Triac POPUP POPUP 600 16 16 POPUP 16 3 1.4 30 - 1.5 - 150 5(150℃) 8 3
TMG16CQ60 Triac POPUP POPUP 600 16 16 POPUP 16 3 1.4 30 - 1.5 - 150 5(150℃) 8 1.4
TMG16C80F5 Triac POPUP POPUP 800 16 16 POPUP 16 2 1.4 30 - 1.5 - 125 10 8 3
TMG16C60H Triac POPUP POPUP 600 16 16 POPUP 16 2 1.4 30 - 1.5 - 125 10 8 1.4
TMG16C60 Triac POPUP POPUP 600 16 16 POPUP 16 2 1.4 30 - 1.5 - 125 10 8 1.4
TMG12D60F5 Triac POPUP POPUP 600 12 12 POPUP 12 2 1.4 10 - 1.5 - 125 10 6 3.3
TMG12CQ60F5 Triac POPUP POPUP 600 12 12 POPUP 12 2 1.4 30 - 1.5 - 150 5(150℃) 6 3.3
TMG12C60 Triac POPUP POPUP 600 12 12 POPUP 12 2 1.4 30 - 1.5 - 125 10 6 1.8
TMG10D60F5 Triac
