MRT-HPR

Features

Faster rise and fall time of output pulse current (Max. 50s)
No idle period during output current polarity change

Changing the pulse polarity of the output current between forward and reverse, usually leads to idle periods under conventional method. With our product, that idle period is eliminated so you can achieve high quality plating.
Reduces ripple contained in output current

Plating tends to lose gloss because of the ripple current included in the output current. Our product reduces it to 5% or less and eliminates the gloss loss by using high frequency inverter circuit technology.
Extensive lineup

We have four types of power supplies, with output current ranging from 40A for laboratory to 500A for large capacity.
Switching the output waveform

Depending on the purpose, select the DC output, pulse output for positive side and positive and negative pulse output.
Parallel operation by synchronized operation

It is possible to operate multiple units in parallel by using the synchronized function. You can obtain uniformity on the front and back of plating products and stable quality of large plated products. Option

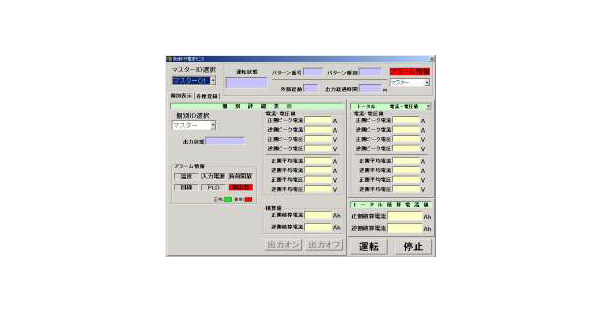

Measurement monitoring function

It is possible to control multiple power supplies simultaneously via PC thanks to the RS-485 communication port on the main unit (standard). Output and current integration can also be displayed. In addition, we can provide a software for complex output conditions. Option

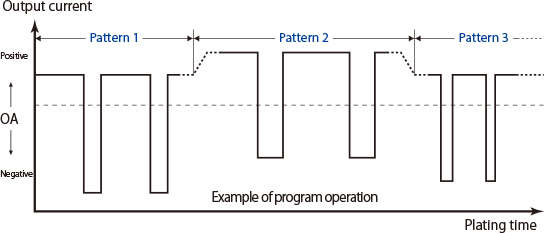

Program operation function

A combination of pulse peak current value, pulse width, and plating time for each of the positive and negative polarities is set as one pattern. You can record up to 10 patterns. You can run the programmed operation sequentially and in any desired order.

Specifications

Model		MRT-800.4HPR	MRT-8001HPR	MRT-8003HPR	MRT-8005HPR
Output	Positive peak current	40A	100A	300A	500A
	Negative peak current	100A	300A	900A	1500A
	Constant current control accuracy	±3.0%
	Positive polarity pulse width	10 - 99.9ms
	Negative polarity pulse width	0.1 - 2.0ms
	Positive/negative current changing time	50μs（TYP）
	Positive polarity voltage peak value	8V
	Negative polarity voltage peak value	15V
	Positive/negative pulse ratio	5:1 or more

＊: We offer products with different voltage / current in addition to the above.
＊: For detailed specifications, please see the catalog or contact us directly.
＊: The KTA Series, Pulse Reverse Rectifier (Gen.2) is also available on request. Ask us for more details.

Catalog

Lineup that meet customer needs

Product inquiry

Please contact us for customization

There are ways to improve the efficiency of on-site work by customizing standard products to fit your own usage conditions.
We meet the needs of customers with the know-how we acquired over many years in Power Supply manufacturing.
