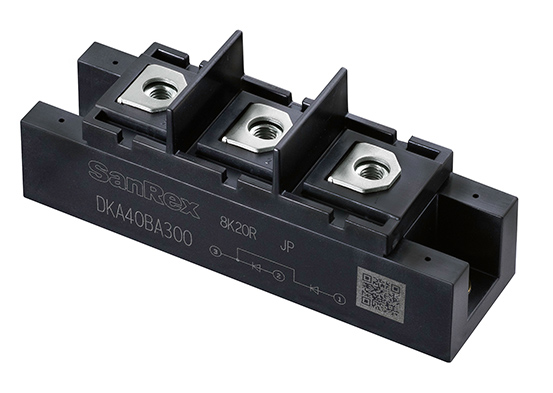

Examples - Blocking diode module
The photovoltaic blocking diode requires the use of a product that has a reverse breakdown voltage twice as much as the string voltage in consideration of the safety aspects. Now, with the current trend toward higher voltages in photovoltaic power generation systems, we offer a lineup of bloking diodes with ultra-high reverse breakdown voltages up to 3000 V for use in 1500 VDC strings.
Features
- Low loss and high heat dissipation achieved using a dedicated diode chip
- Unique terminal layout for easy wiring
- Lineup for string voltages from DC450V to DC1500V
- Use of high voltage strings = overall system loss ↓, parallel strings number

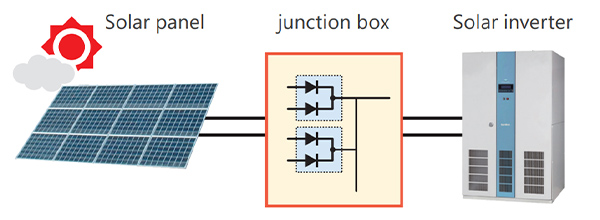

Example of installation
Please contact us for customization
There are ways to improve the efficiency of on-site work by customizing standard products to fit your own usage conditions.
We meet the needs of customers with the know-how we acquired over many years in Power Supply manufacturing.
