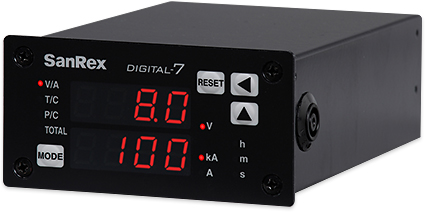

Digital DC Integrating Meter DIGITAL-7

DIGITAL-7

Catalog

Features

  • Digital display

    All set values and measurement values displayed.

  • 4 functions in 1 unit

    4-digit preset integrating ammeter, 8-digit total integrating ammeter, Ammeter, voltmeter

  • Memory function

    The measured values are stored until the reset signal appears.

  • Extensive options

    ① Meter relay function ② Count pulse outputs ③ Communications function

Specifications

Shunt resistor signal input DC0-50mV / DC0-60mV
Voltage detection input DC0-50V
Accuracy Voltage display and integrated current ±1.0% F.S.
Current display ±0.5% F.S.
Display function Voltage/current, count/preset, and total display mode switching (using keyboard switches)
No. of digits displayed Voltage/current display: 4 digits, Preset counter display: 4 digits, Total counter display: 8 digits
Rated current range 0.010A – 9999kA
Integrated current units AS / AM / AH
Integrated current range  ×1 / ×10
We offer products with different voltage / current in addition to the above.
For detailed specifications, please see the catalog or contact us directly.
