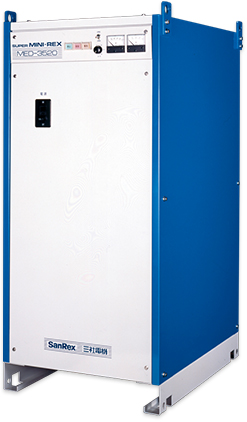

MED Thyristor rectifier for electrodeposition coating

MED

Features

Low ripple

The voltage ripple is max. 5% at rated output.
Improved operability

All operations can be performed from the front panel.
Soft start function

Can be set from 10 to 60 seconds.
Constant voltage and constant current control

Select between constant voltage and constant current control.
Supports various control input and output

Operates next to the plating tank or remotely.
Connection with external computer available.

Specifications

Output range	Voltage: 1/10 – rated voltage
Output range	Current: 1/10 – rated current
Output control method	3-Phase full wave rectification Thyristor based phase control
Control characteristics	Constant voltage (It is possible to change to constant current)
Control characteristics	Soft start time 10 – 60 sec. Arbitrary setting
Ripple	RMS 5% at rating output
Ripple	(option : RMS 2% at half load)

＊: We offer products with different voltage / current in addition to the above.
＊: For detailed specifications, please see the catalog or contact us directly.
