CleanRex Ultrasonic Cleaning Systems
Features

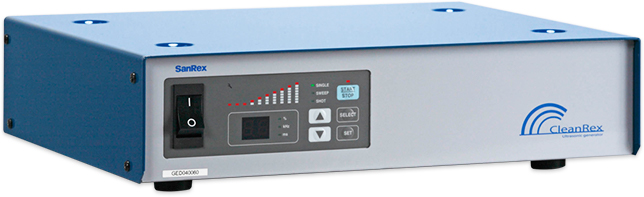

Reliable, strong and stable ultrasonic generator
-
Powerful sweep function reduces uneven cleaning.
Shot function accelerates effectively deaeration.
Full power outputs even in sweep mode.
Normal single function also available. -
Full digital control. User-friendly panel, and built-in excellent tracking function.
Constant ultrasonic output maintained even with unstable input power, and when switching cleaning items. Failures indicated by code. -
Compact and lightweight. Same dimensions for 600W and 1,200W models.
Stackable equipment (Up to 4 units) -
Output adjustment range from 25 to 100%, allowing optimum cleaning output.
-
Achieving high environmental resistance performance as per surface treatment industry standards. Provide excellent durability even in challenging environments by sealing all enclosures except ventilation parts.
-
Built-in timer indicates ultrasonic generator’s lifetime.
-
Easy replacement thanks to our unique tracking function.
You can also use a conventional electrostriction oscillator. -
Supports open field network communication (DeviceNet and CC-Link ) by adding an optional card.
Specifications
| Output | 600W | 1200W | ||
|---|---|---|---|---|
| Nominal frequency | 28kHz | 40kHz | 28kHz | 40kHz |
- ＊
- Please see the catalog for detailed specifications.

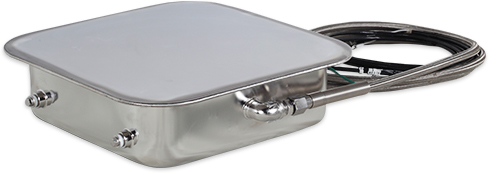

Oscillator
High power and low frequency for even cleaning
-
Narrow oscillator models also available (compared to our conventional products)
-
Special structure of the wire connections for better airtightness
-
Use of shielded fluororesin tubes to easily connect to the oscillator, further protected with stainless steel braid.
-
Chemical resistance to solvents and alkaline aqueous solutions.
-
Uses BLT (bolt tightening langevin type) that withstand high temperature up to 100℃. Possibility to clean even in high temperature liquid.
-
Thick oscillator plate for longer product life while delivering powerful vibration for efficient cleaning.
-
An acid resistant series is also available (Made-to-order)
Specifications
| Nominal input | 28kHz 600W |
|---|---|
| 28kHz 1200W | |
| 40kHz 600W | |
| 40kHz 1200W |
- ＊
- Please see the catalog for detailed specifications.
Please contact us for customization
There are ways to improve the efficiency of on-site work by customizing standard products to fit your own usage conditions.
We meet the needs of customers with the know-how we acquired over many years in Power Supply manufacturing.
