2 in 1 Fast Recovery Diode Module
DKR400CA60

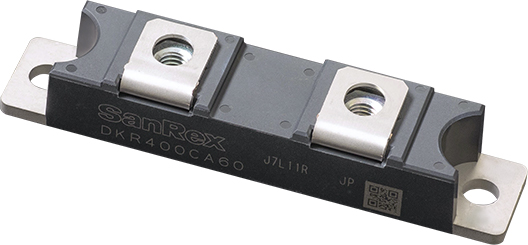

Techno Block 2 in 1 Fast Recovery Diode Module

We achieve excellent long-term reliability, high-temperature operation, size and weight reduction by combining our high-speed diode chip with our unique "Techno Block" Package

Unique package combining the transfer mold method with a structure in which a metal and a chip are sandwiched by soldering.
Achieves long-term reliability and downsize by not using wire bonding technology for connection.
Techno Block is a trademark of Sansha Electric MFG. Co., Ltd.

Features

By adopting "Techno Block" package,

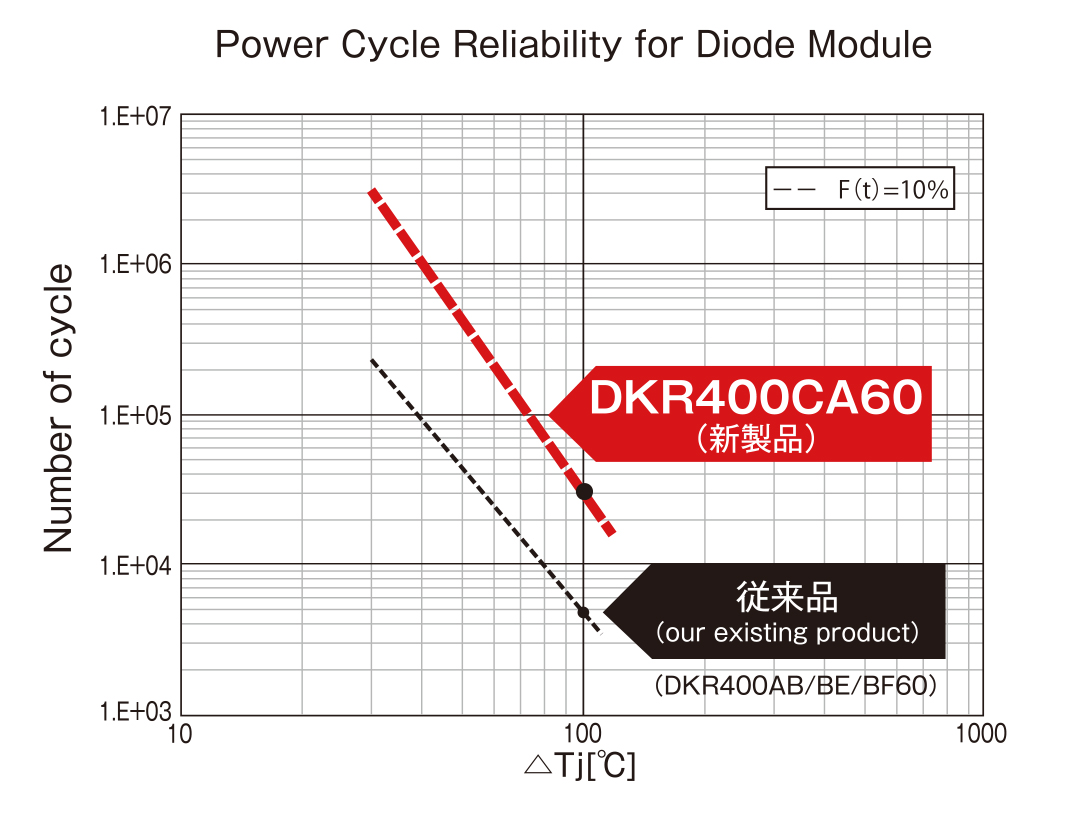

  • the power cycle capability is 5 times better than conventional one (@△Tj=100℃)
  • the device is smaller, lighter, and can operate at high temperature (Tj=150℃)

Applications

  • Welding machines
  • Plasma cutting machines
  • Plating equipment

Maximum Ratings

Tj = 25℃ unless otherwise specified

Item Symbol Unit Ratings
Repetitive Peak Reverse Voltage VRRM V 600
DC Reverse Voltage VR(DC) V 480
Item Symbol Unit Ratings Conditions
Forward Current Per Module IF A 400 DC Tc=105℃
Per Leg 200 DC Tc=105℃
Surge Forward Current IFSM A 5100/5600 1/2cycle,50/60Hz, Peak Value, non-repetitive
l2t(for fusing) I2t A2s 130000 Value for one cycle surge current
Operating Junction Temperature Tj -40 to +150 -
Storage Temperature Tstg -40 to +125 -
Mounting Torque Mounting(M6) - N・m 4.7 Recommended Value 2.5 to 3.9
Terminal(M6) 4.7 Recommended Value 2.5 to 3.9
Mass - g 71 -

Electrical Characteristics

Tj = 25℃ unless otherwise specified

Item Symbol Unit Ratings Conditions
Min. Typ. Max.
Repetitive Peak Reverse Current IRRM mA - - 200 Tj=125℃, VR=VRRM
Forward Voltage Drop Per Module VFM V - 1.40 1.60 IFM=400A, Inst. measurement
Per Leg - 1.40 1.60 IFM=200A, Inst. measurement
Reverse Recovery Time Per Module trr ns - 120 200 IF=400A, -di/dt=400A/μs
Per Leg - 120 200 IF=200A, -di/dt=200A/μs
Thermal Resistance Per Leg Rth(j-c) ℃/W - - 0.14 Junction to Case
