Launched the GSA series of SOT-227 packaged IGBT modules

We are pleased to announce that the GSA series of SOT-227 packaged IGBT modules will be available from April 2022.
By offering two types, a low Vce(sat) type and a high-speed switching type, we are able to meet a wide range of customer requirements.

GSA100AA60_製品写真



【Product Overview】

Tj(max): 150℃

Type IGBT FWD Rthj-c
℃/W
Fig
No.
Vᴄᴇꜱ
V
Vɢᴇꜱ
V
IC Vᴄᴇ(sat)
V
Vɢᴇ(th)
V
ton toff trr
A μs μs ns
GSA75AA120 1200 ±20 75 57 3.9 6.3 115 275 125 0.25(IGBT) 23
GSA100AA60 600 ±20 100 113 1.5 6.7 1260 8780 0.25 23



【Features】

  • Compact and reliable package
    ・ Compact and reliable SOT-227 standard package ・ Can be directly attached to the heat sink ・ Isolation voltage 2500V ・ RoHS compliant

・・・・GSA100AA60・・・・

    • Pursuing low loss in the low switching frequency range
      ・Achieves low Vce(sat) thanks to our original IGBT chip(Tj=125℃ Vce(sat)1.21V Typ.))

【Main applications】
▶AC / DC TIG Welding Equipment
▶Bypass AC Switch (such as UPS)
▶Forward-Reverse pulse power
 (for surface treatment)


・・・・GSA75AA120・・・・

    • Excellent high-speed performance(40~70kHz)
      ・Uses IGBT chip specialized for high-speed performance and high-speed diodes optimally designed to match the IGBT

【Main applications】
▶Welding/Cutting Equipment
▶Induction Heating Supply
▶Switching Mode Power Supply
▶Uninterruptible Power Supply (UPS)


The SOT 227 package contributes to the overall miniaturization of on-board equipment.

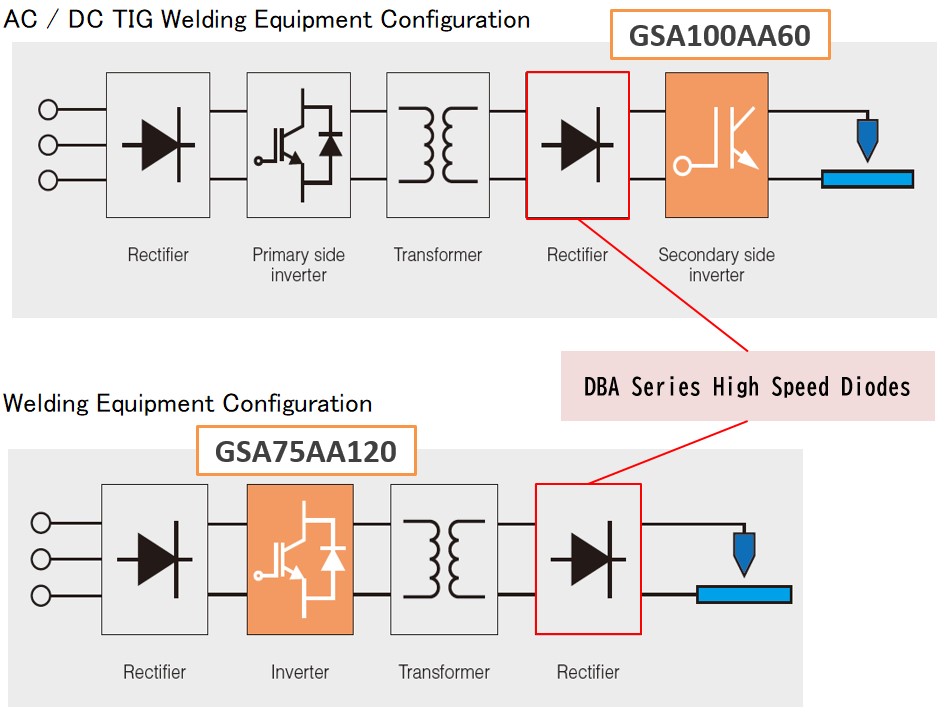

GSA構成例_英

【Environmental Considerations】

This product complies with the RoHS* directive (2011/65/EU and (EU)2015/863).
※ Restriction of the use of certain Hazardous Substances in electrical and electronic equipment.

【Price】

Please contact our Semiconductor Sales Department.


*The information in this press release is current at the time of publication. Contents are subject to change without notice. Thank you for your understanding.
