Notice of expansion of DIP type three-phase rectifying diode bridge lineup

We have expanded the lineup of DIP-type three-phase rectifying diode bridges that use a transfer mold ^* package that is compact and has excellent long-term reliability, and have started mass production.
By adding 75A and 100A products to the conventional 60A products, we are now able to meet a wide range of customer needs.

* Transfer molding is a type of thermosetting resin molding method that heats the material to soften it and then press-fits it into the mold.

[ features]
In recent years, DIP (dual in-line package) type IPMs (intelligent power modules) have been widely used in the inverters of commercial air conditioners and industrial robots in order to achieve miniaturization and high reliability.
Our DIP type three-phase rectifier diode bridge product can be mounted on the same printed circuit board as the DIP type IPM as an input rectifier diode for IPM. Adopting an internal structure that greatly reduces thermal resistance and a copper heat dissipation plate, it achieves about 1/10 in volume while having the same performance as our conventional module of the same capacity, and is more than 3 times longer reliable. Achieves property (power cycle withstand capacity).
Equipped with a 1600V high withstand voltage diode chip with a mesa structure, it can also be used for input AC400V systems.

1. Excellent long-term reliability
 Improved power cycle capacity by adopting transfer mold package
2. Small size
 With an internal structure that significantly reduces thermal resistance and a copper heat dissipation plate
Achieves a volume ratio of approximately 1/10 compared to our conventional model (DF60LA / LB)
3. Space saving
Multiple single-phase bridges can be used together
Achieves space saving and reduction of assembly man-hours by reducing the number of parts
4. Dual terminal adopted
 Both large current capacity and good solderability
5. Double-sided marking
 Product identification is possible even in the mounted state

[Main applications]
 ・ Package air conditioner
 ・ General-purpose inverter
 ・ Servo controller
 ・ Battery charger
 ・ Various power supplies

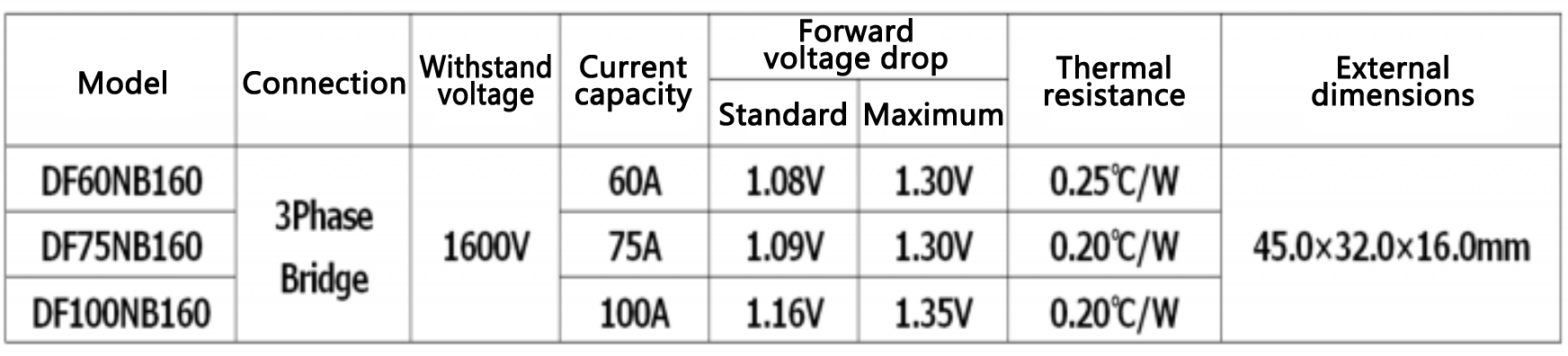

【Product Specifications】

[Appearance / external dimensions and equivalent circuit]
Common to DF60NB160, DF75NB160, DF100NB160

[Production Factory] Okayama Plant Factory: 1741 Persimmons, Nagi-cho, Katsuta-gun, Okayama Plant 708-1312

[Price] Please contact our sales office.

* The information contained in this press release is as of the time of the announcement. The contents are subject to change without notice. Please note.
