Examples - Fuel cell test
(Regenerative bidirectional power supply for charge/discharge of storage batteries)

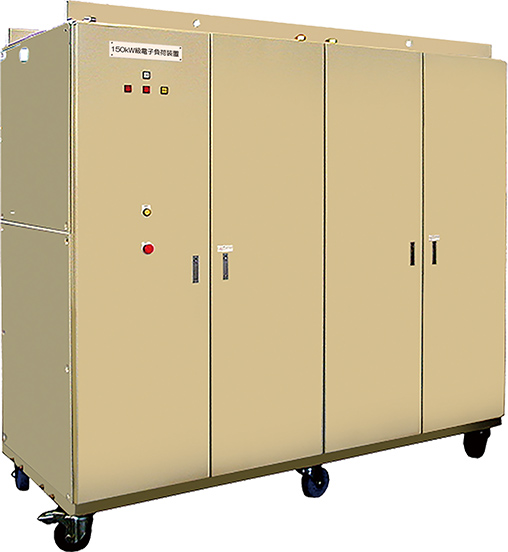

Equipment used to test battery systems including fuel cells and power storage devices for automotive and residential cogeneration system.

High performance, high accuracy test equipment for a wide range of load conditions

This test equipment recreates the load conditions of a hybrid vehicle, part of the development of a high performance fuel cell.

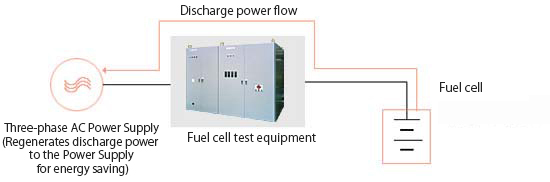

Operation outline

1. Can be used for general storage batteries other than fuel cells
   Possibility to use as charging/discharging equipment for testing of general storage battery.
2. High accuracy and high stability control
   Provides reproducible and reliable test results.
3. High speed response
   Possibility to get closer to actual operating conditions thanks to high speed control.
4. Energy saving
   Saves energy by regenerating fuel cell discharge power to AC power source.
5. Maximum capacity
   We can meet customer needs within 0 to 500kW and 0 to 1000V.
